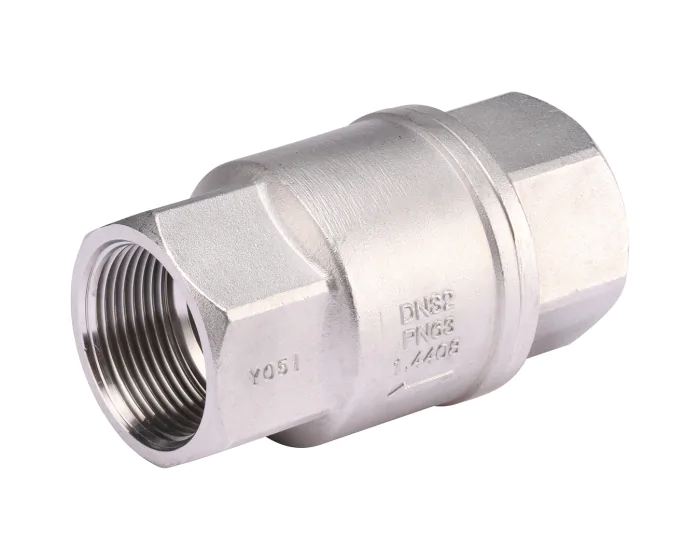

The 329 series spring check valve is a double-guided disc check valve with RTFE seat. It is suitable for installation in all positions in the chemical, pharmaceutical, petrochemical, hydraulic, compressed air and water industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| Mounting direction | All positions |
| Thread standard | ISO 228-1 |
| Tightness test standard | API 598. table 6 |
| Closure member material | Stainless steel ASTM A351 CF8M |
| Application | Industry |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 58.7 |
| Fluid | Acids |
| Gasket | PTFE |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| Warranty period | 2 years |
| Obturator type | Spring |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Spring 1/4'' | 329002 | S1010851 |
€25.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Spring 3/8'' | 329003 | S1010852 |
€26.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Spring 1/2'' | 329004 | S1010853 |
€30.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Spring 3/4'' | 329005 | S1010854 |
€33.49
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Spring 1'' | 329006 | S1010855 |
€41.09
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Spring 1''1/4 | 329007 | S1010856 |
€111.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Spring 1''1/2 | 329008 | S1010857 |
€145.77
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Spring 2'' | 329009 | S1010858 |
€215.21
(excl. btw)
|
add to cart |
